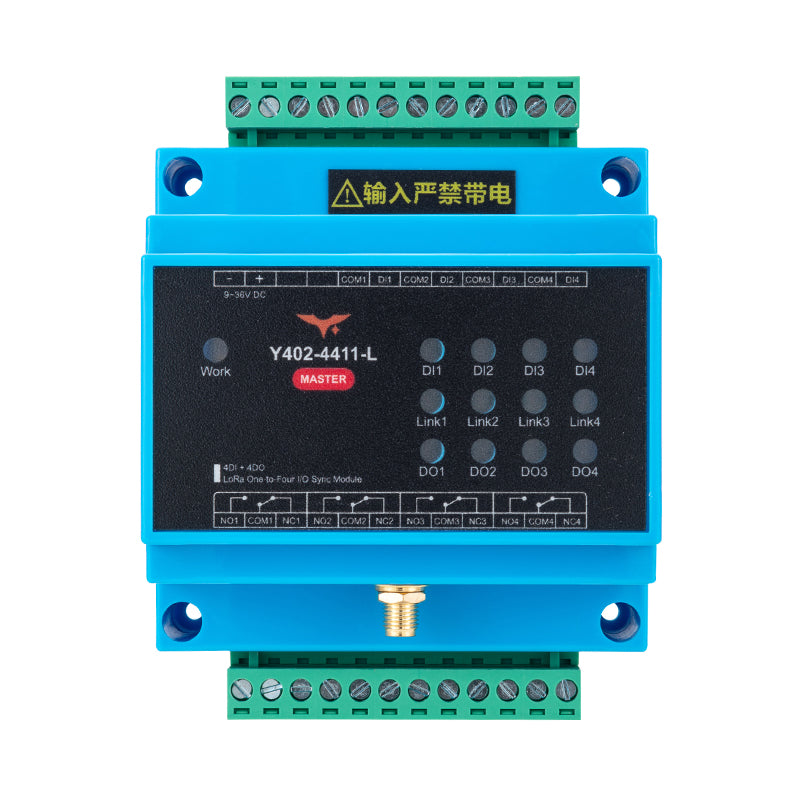

Y402-41-L LoRa Four-Channel Master / One-Channel Slave I/O System

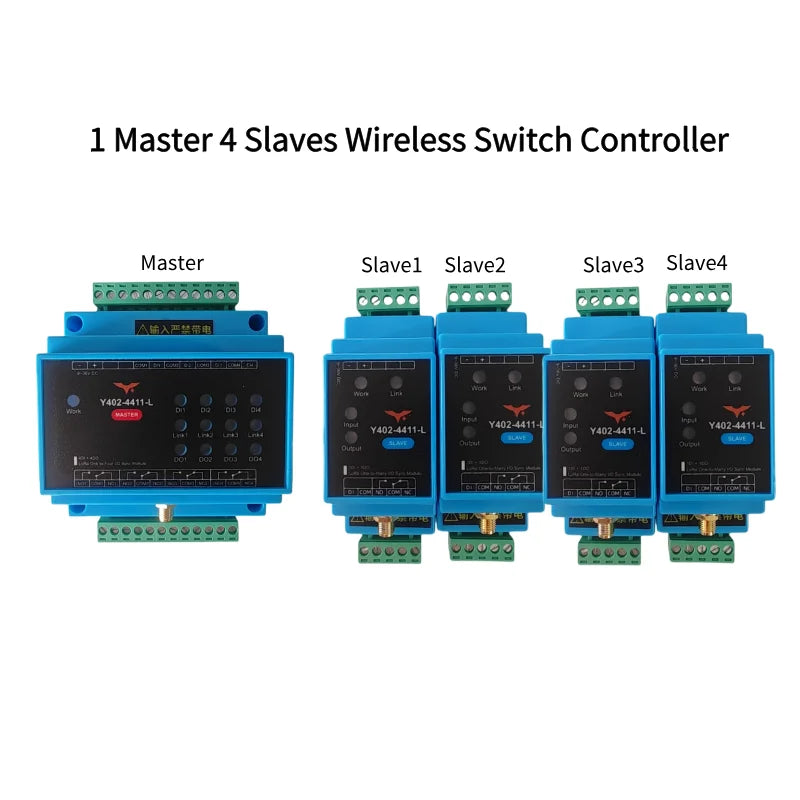

Y402-41-L, combines a 4DI/4DO LoRa master with up to four 1DI/1DO slave units.
- Product type / topology
- One-to-many; four independent bidirectional master channels
- Channels
- Master: 4DI + 4DO; each slave: 1DI + 1DO
- Input signals
- Master: 4DI; each slave: 1DI; passive dry contact / NPN open collector, no voltage input
- Power supply
- 9–36 VDC
$190.00
Price for the selected configuration.
Shipping & Tax: Shipping is quoted separately and paid before dispatch. Import duties, taxes, customs fees and destination charges are paid by the customer.
Overview
Y402-41-L, combines a 4DI/4DO LoRa master with up to four 1DI/1DO slave units. Each slave is assigned to one independent master channel.
Typical applications
Central control and feedback for up to four separate one-channel remote points.

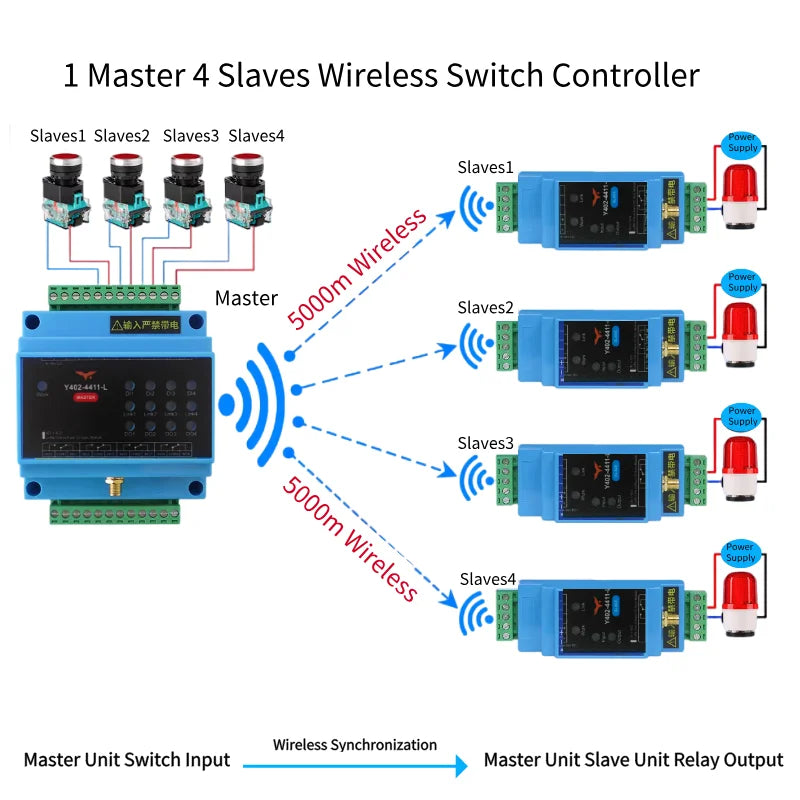

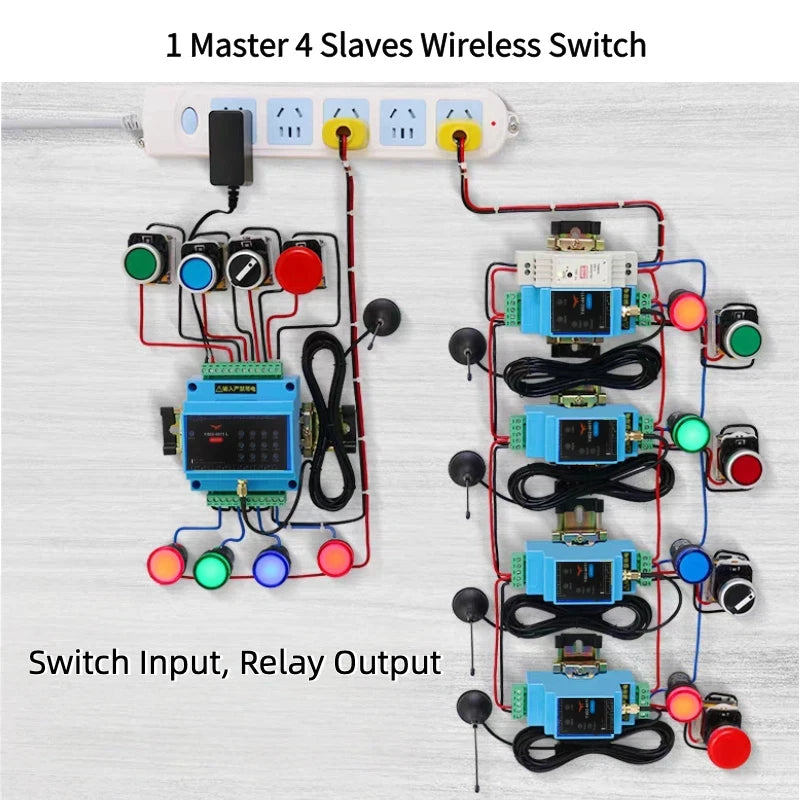

How it works & selection

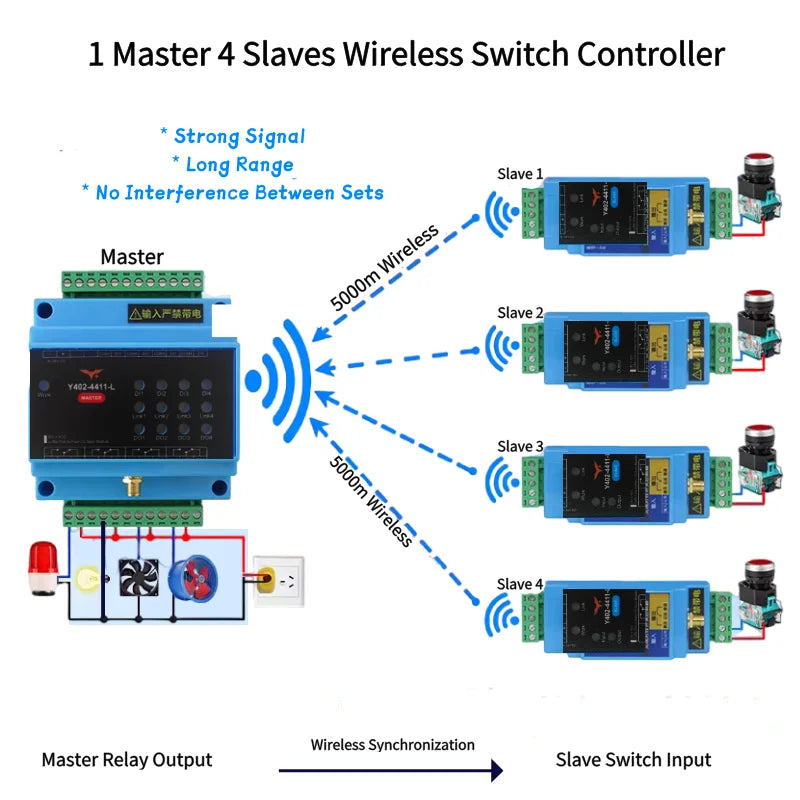

- Master DI1 to DI4 each drive the DO on the slave assigned to that channel.
- Each slave DI drives the corresponding DO1 to DO4 on the master.
- Each output resets when its associated input returns to open.
- This is independent bidirectional channel mapping, not one input driving four outputs together.
Selection notes
Confirm the master/slave quantity and channel assignment for your installation. Wireless range depends on the selected version, antennas, terrain, and obstructions.
Technical specifications
| Product type / topology | One-to-many; four independent bidirectional master channels |
|---|---|
| Channels | Master: 4DI + 4DO; each slave: 1DI + 1DO |

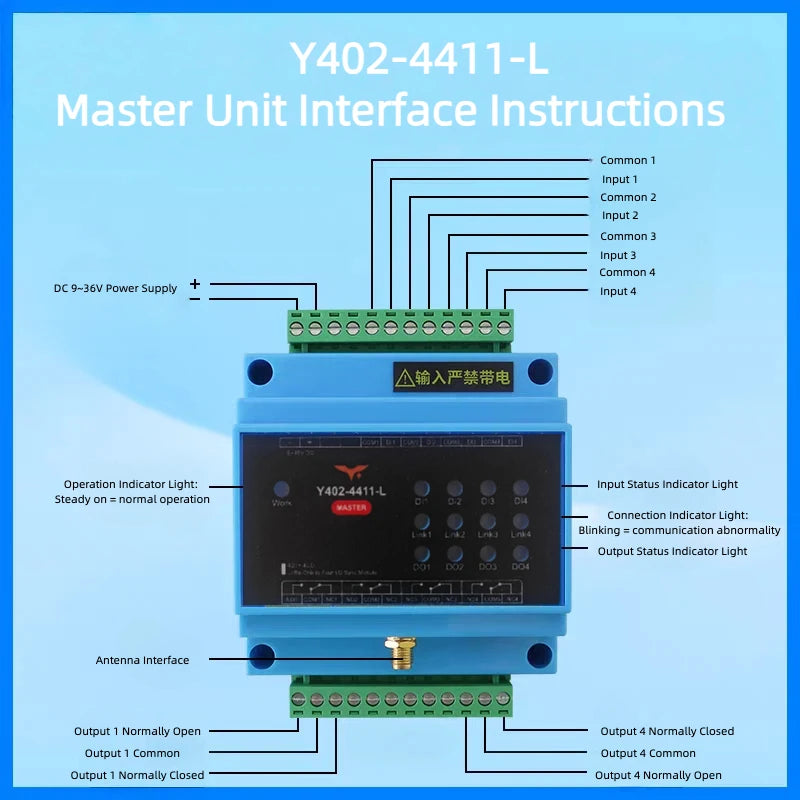

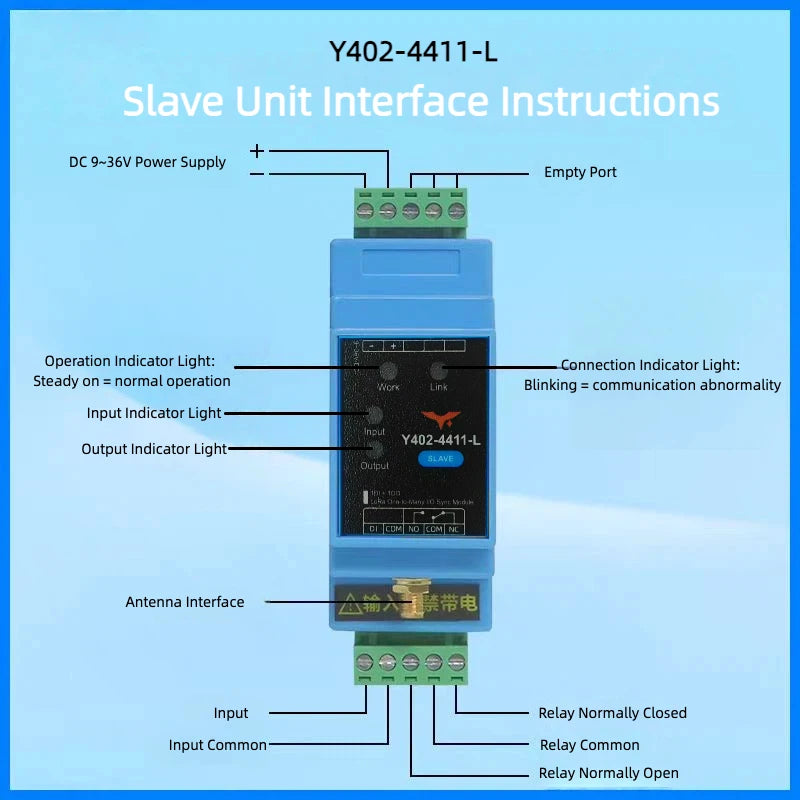

| Input signals | Master: 4DI; each slave: 1DI; passive dry contact / NPN open collector, no voltage input |
| Power supply | 9–36 VDC |
Signals and communication
| Product type / topology | One-to-many; four independent bidirectional master channels |
|---|---|
| Channels | Master: 4DI + 4DO; each slave: 1DI + 1DO |
| Signal mapping | Each master DI drives its assigned slave DO; each slave DI drives the matching master DO |
| System configuration | 1 master + 4 slaves (current product option) |
| Frequency band | 398–525 MHz |
| Communication range | Up to 5 km (open area; model, antenna, and site dependent) |
Electrical
| Power supply | 9–36 VDC |
|---|---|
| Input signals | Master: 4DI; each slave: 1DI; passive dry contact / NPN open collector, no voltage input |
| Relay outputs | Master: 4DO; each slave: 1DO |
Package & resources
Package contents
| Item | Qty. |
|---|---|
| Y402-41-L master module | 1 |
| Y402-41-L slave module | 1 |
| 470 MHz magnetic-mount antennas | 2 |
| DIN rail clips | 2 |
| Quick reference guide | 1 |
| Warranty card | 1 |
