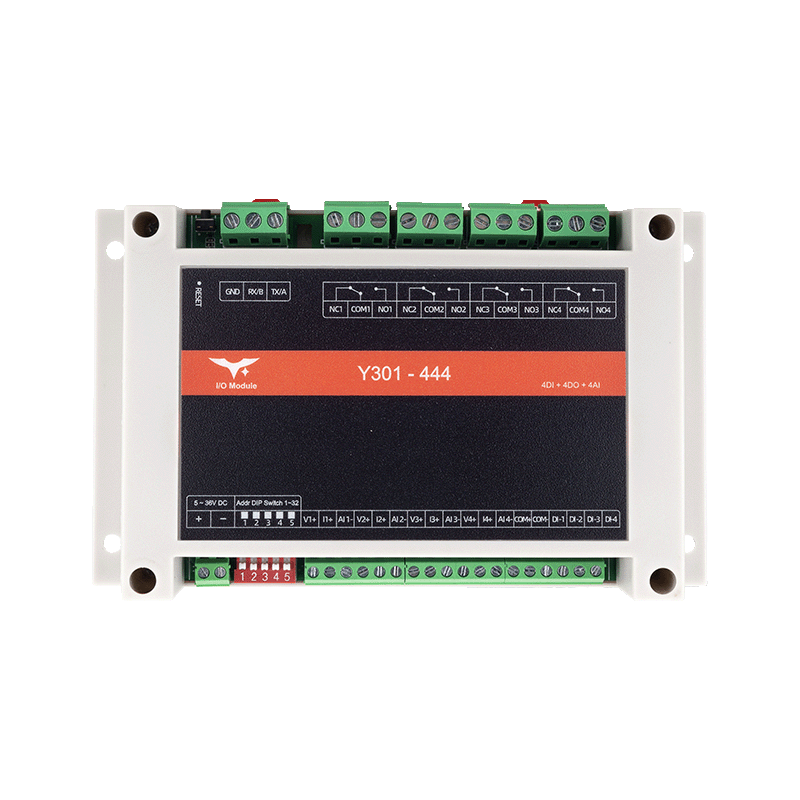

Y301-444 I/O module with 4DI, 4DO and 4AI

Y301-440/444 4DI + 4DO I/O Module

$35.00

Shipping quoted separately. Duties, taxes and customs fees are paid by the customer.

30-Day Money-Back Guarantee

1-Year Warranty

Expert Technical Support

Product Description

Y301-440 and Y301-444 provide four digital inputs and four relay outputs for Modbus RTU cabinet expansion. Y301-444 adds four analog inputs, making it a practical choice when a control panel needs switch status, relay control, and process signal acquisition in one module.

Best Fit

Multi-zone lighting, fan, valve, and pump control.
Cabinets that need balanced 4DI + 4DO remote I/O.
Process control panels that also need 0-10 V, 0-5 V, or 4-20 mA input.

Model Options

Y301-440	4DI + 4DO, compact digital I/O node.
Y301-444	4DI + 4DO + 4AI, for digital control with analog sensing.

Before Ordering

If your project only needs digital points, choose Y301-440. If analog sensors are part of the same cabinet, Y301-444 avoids an extra module.

Ask us to review your point list

Documents

Download the Y301-440/444 datasheet

Shipping & Tax: Product price excludes shipping. Shipping is quoted separately and paid before dispatch. Import duties, taxes, customs fees and destination charges are paid by the customer.

View Shipping Policy

Y301-440/444 4DI + 4DO I/O Module specifications
Topology / product type	Modbus RTU digital I/O module
Channels / ports	4DI + 4DO; Y301-444 adds 4AI
Interfaces	RS485 2-wire; optional RS232/TTL; DI/DO/AI terminals
Protocols	Modbus RTU slave
Power input	5–36 VDC
Max power consumption	200 mA @ 12 V typical; 280 mA max
Input signal	4DI dry/wet contact; Y301-444: 0–10 V, 0–5 V, or 4–20 mA AI
Relay output	4 × SPDT relay; 277 VAC 10 A / 28 VDC 10 A
Measurement / accuracy	Y301-444 AI: 16-bit resolution; ±1% FS accuracy; 10 Hz sampling
Dimensions	Y301-440: 115 × 90 × 40 mm; Y301-444: 145 × 90 × 40 mm
Mounting	35 mm DIN clip or screw slots
Operating environment	−40 to +85 °C; 5–95% RH, non-condensing; altitude ≤2000 m
Protection rating	IP20; UL94 V-0 flame-retardant housing
Key functions	Pulse counter, AI threshold and logic modes, and up to 8 local automation rules.
