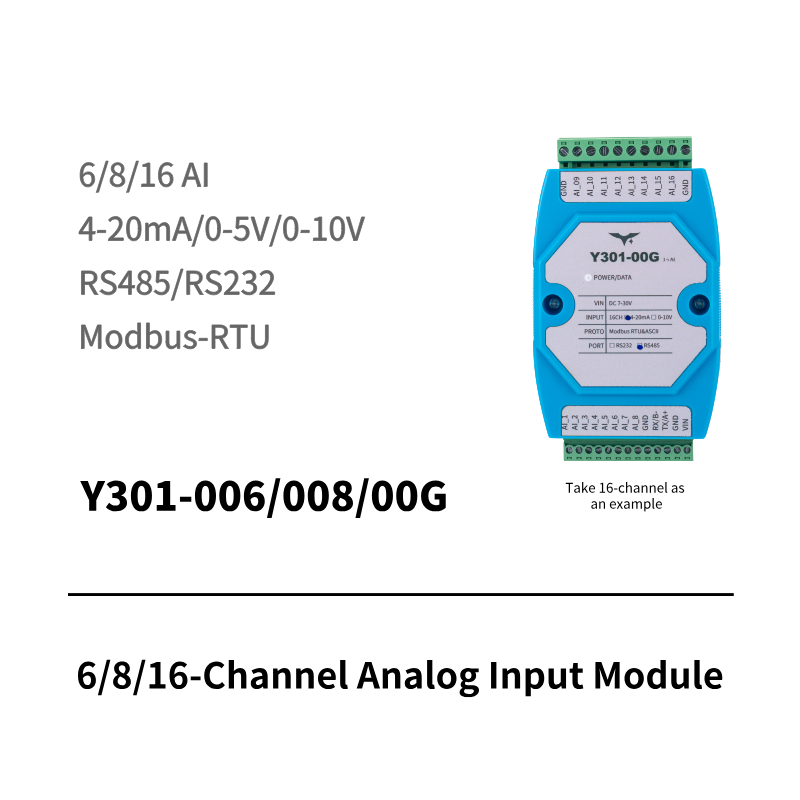

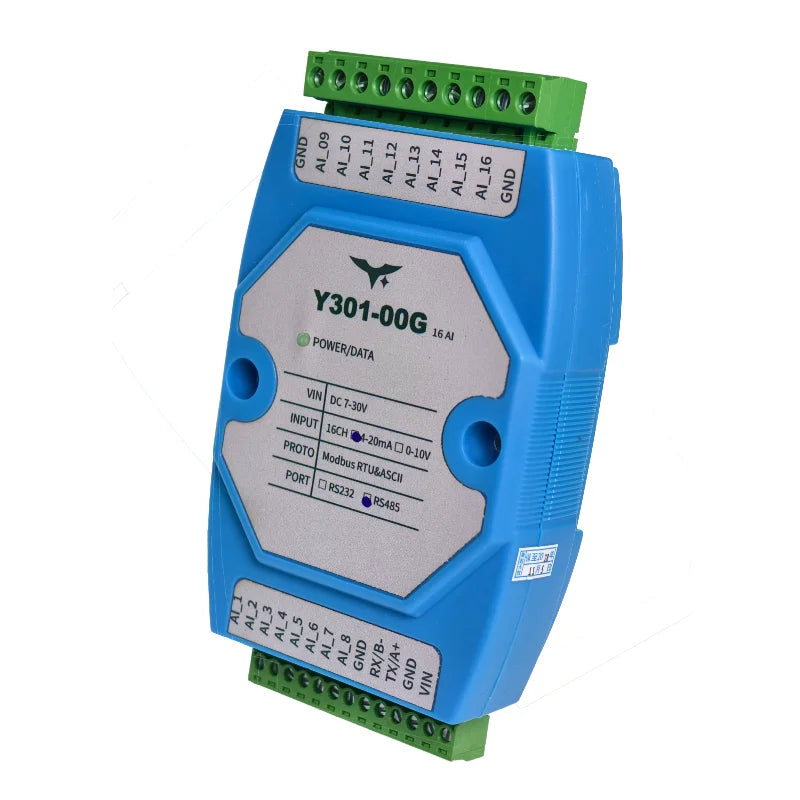

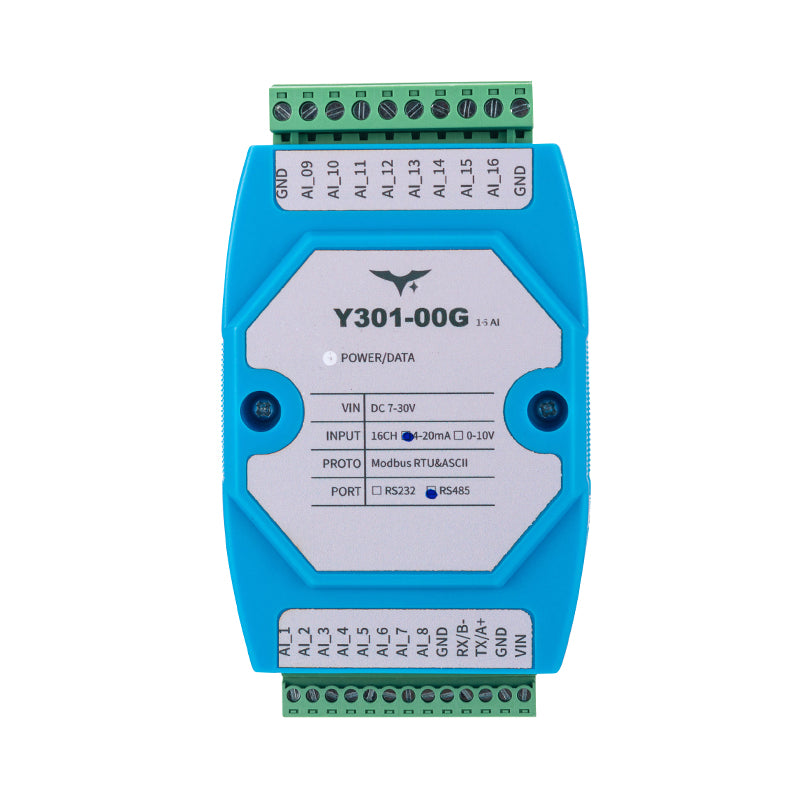

Y301-00G is a 16-channel analog input concentrator for high-density 0-10 V or 4-20 mA signal acquisition. It sends normalized analog values to PLCs, SCADA systems, or edge controllers through Modbus RTU or Modbus ASCII.
Best Fit
- Pressure, level, temperature, flow, and other transmitter signal collection.
- Telemetry panels that need many analog points in one DIN-rail module.
- Building automation, lab systems, OEM skids, and industrial data acquisition.
Key Features
- 16 analog input channels for 4-20 mA or 0-10 V signals.

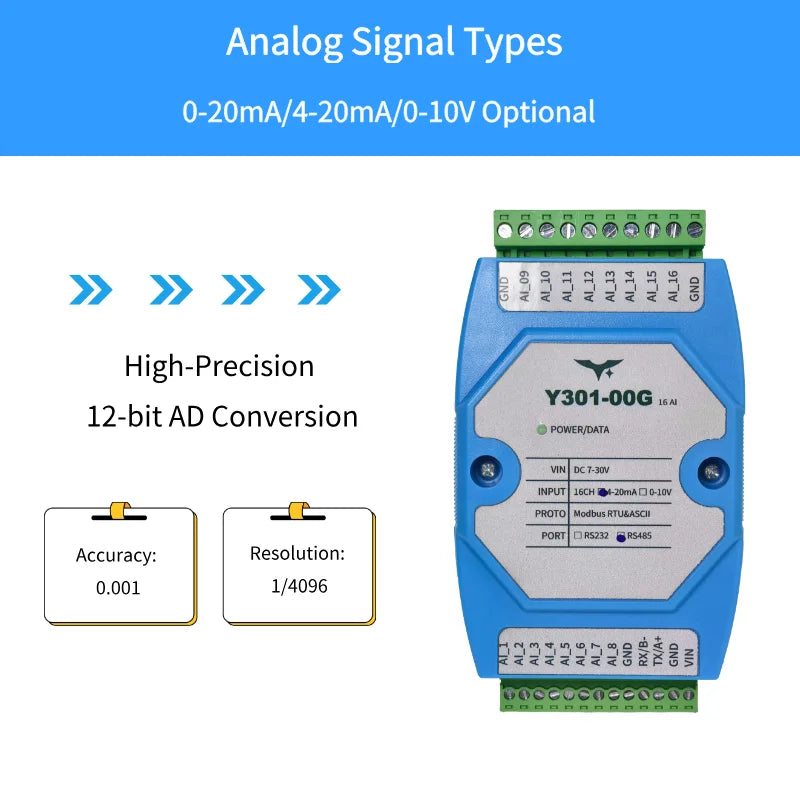

- 12-bit ADC with linear scaling: actual value = register x 0.001.
- RS485 / RS232 interface options with Modbus RTU/ASCII.
- Default address 0 and broadcast address 254 for commissioning.
- JYDAM utility supports live trending, Excel export, offset adjustment, and broadcast discovery.
Key Specifications
| Analog Input | 16 channels, 4-20 mA or 0-10 V depending on version. |
| Power | 7 to 30 VDC, <1.5 W. |
| Size | 100 x 70 x 35 mm. |
Before Ordering
Confirm whether each transmitter outputs 0-10 V, 0-5 V, or 4-20 mA. Mixing signal types may require a different configuration.
