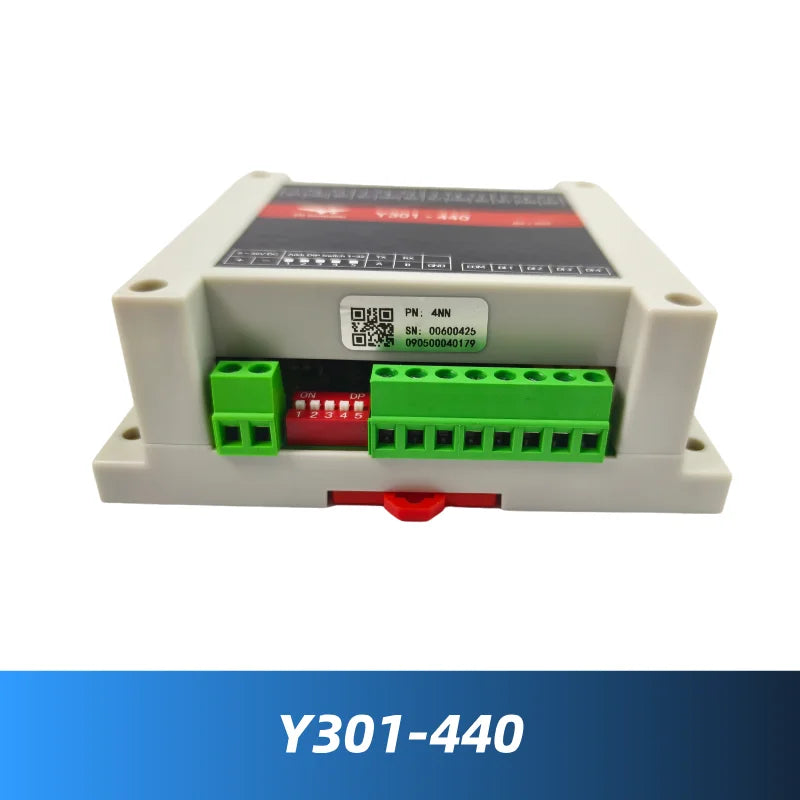

4DI + 4DO + 4AI Multi-Function I/O Module Y301-440/444 Series | Industrial-Grade | Modbus RTU | Relay + Analog I/O
Get Quote Now | Free Technical Solution Consultation
Common Pain Points
Traditional I/O modules often suffer from channel/signal inflexibility limiting multi-type device integration, narrow voltage/temperature tolerance causing failures in harsh environments, low relay load capacity unable to directly drive 220V/380V loads, weak isolation leading to interference/crashes, and complex setup hindering fast integration with PLC/SCADA/LabVIEW systems — severely reducing reliability, adaptability, and deployment efficiency in industrial automation and IoT projects.
Solution & Core Features
1.Flexible Multi-Function Configuration — 4 digital inputs (dry/wet contact, opto-isolated), 4 high-load relay outputs, and 4 analog inputs (switchable 0-10V / 4-20mA), one module covers switch acquisition, power control, and analog monitoring needs.

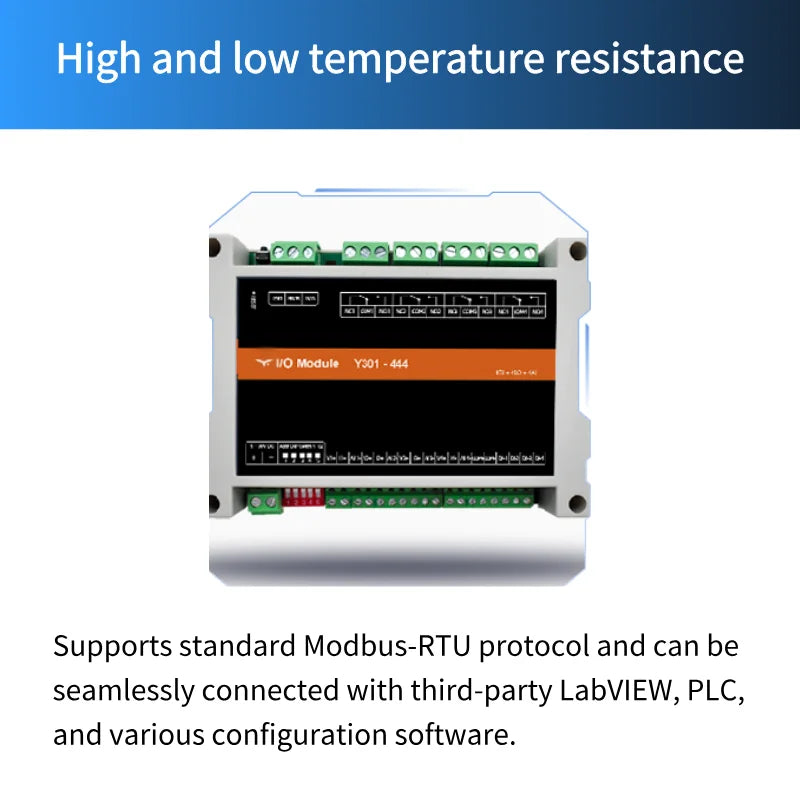

2.Industrial-Grade Reliability — 5000V optoelectronic isolation on inputs, hardware watchdog anti-crash, -40°C to +85°C wide temperature operation, DC 5-36V wide voltage input for extreme environment stability.
3.High-Load Direct Drive — Relay contacts rated 277VAC/10A & 30VDC/10A, directly drives 220V lamps/valves/motors (380V loads via contactors).
4.Strong Anti-Interference & Protection — Multi-level surge/overcurrent/overvoltage/reverse polarity protection, robust noise immunity for reliable field operation.
5.Easy & Fast Integration — Standard Modbus RTU protocol, DIP switch quick addressing, plug-and-play compatibility with PLC/SCADA/LabVIEW/cloud platforms.
Technical Specifications
| Parameter | Details |
|---|---|

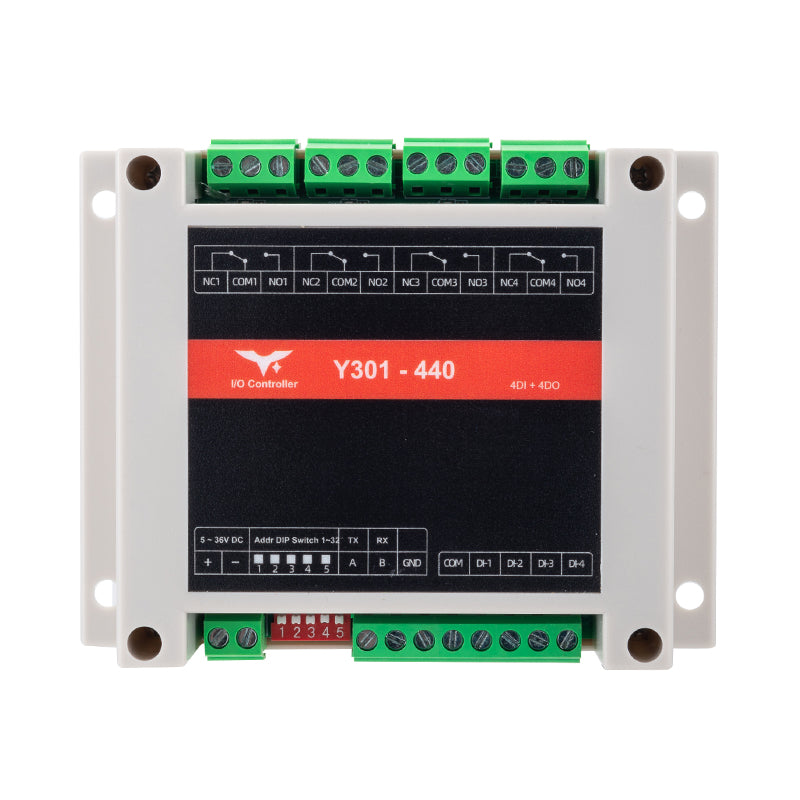

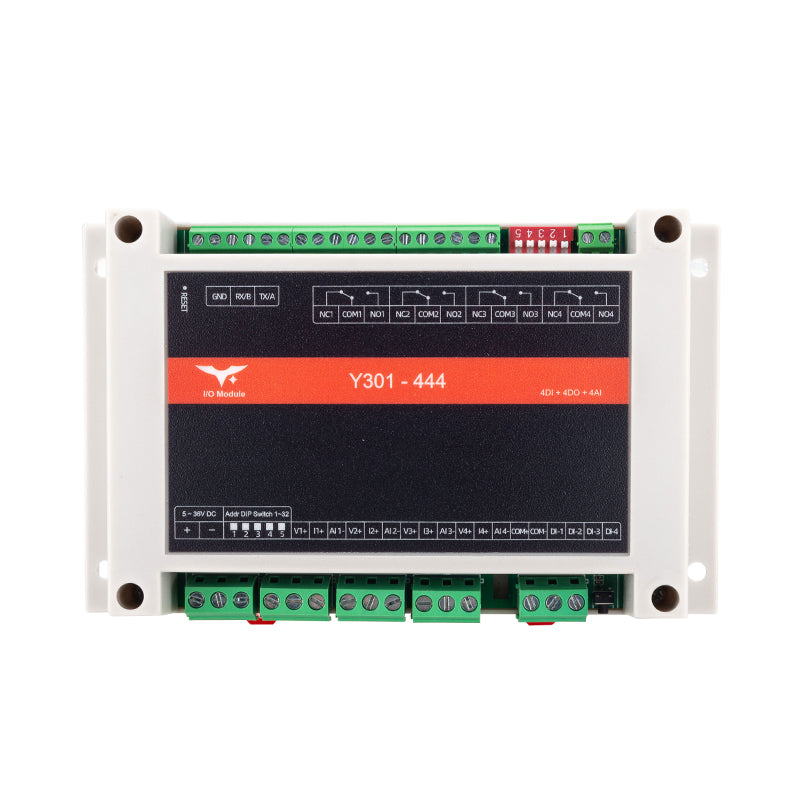

| Model Series | Y301-440 / Y301-444 |
| Digital Inputs (DI) | 4 channels (dry/wet contact, opto-isolated) |
| Digital Outputs (DO) | 4 channels relay output |
| Analog Inputs (AI) | 4 channels (switchable 0-10V / 4-20mA) |

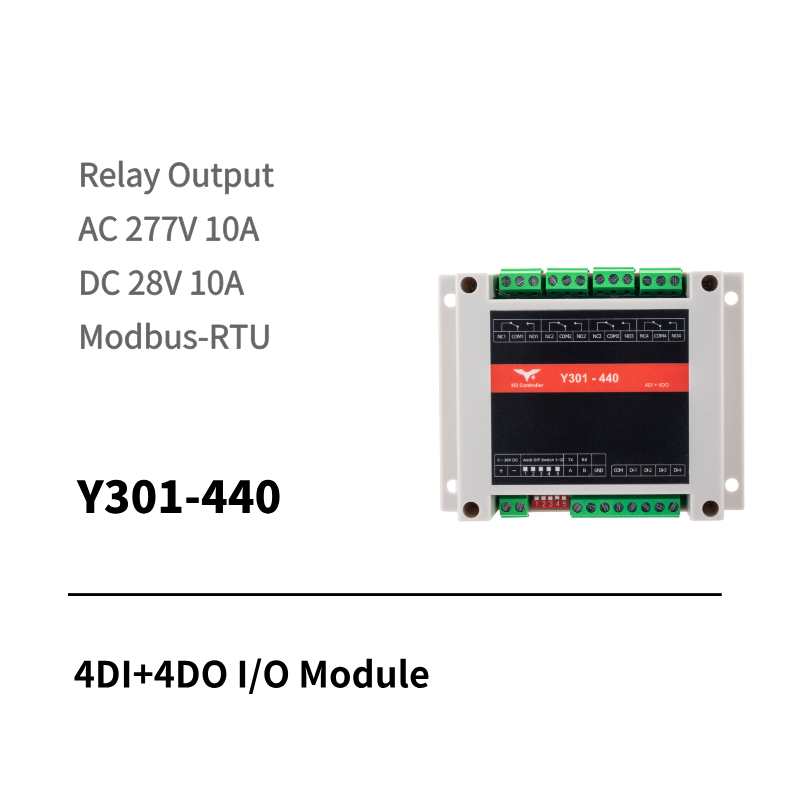

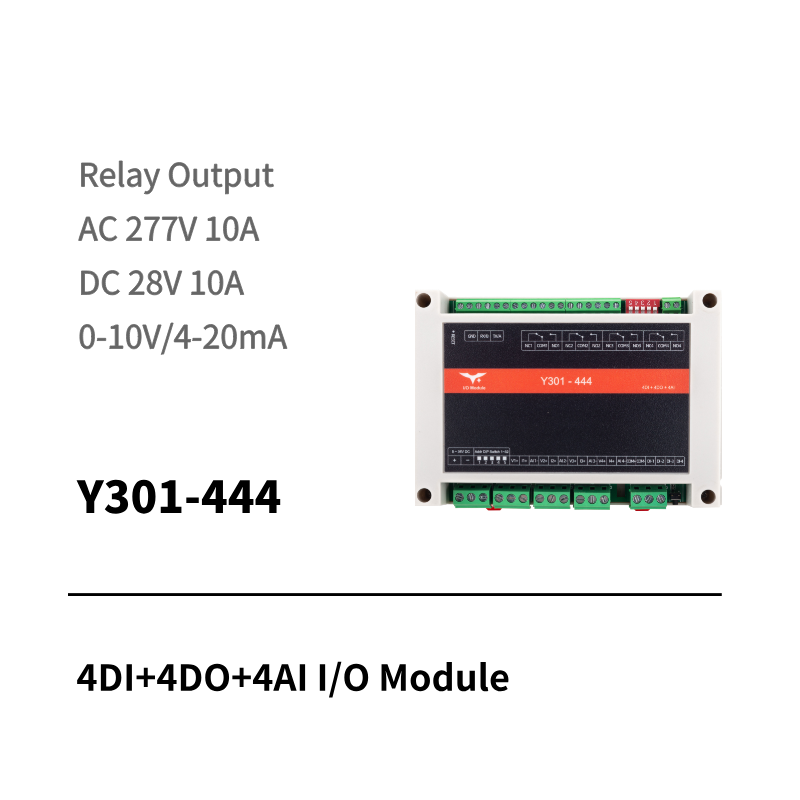

| Relay Contact Rating | 277VAC/10A, 30VDC/10A |
| Isolation Voltage | 5000V (opto-coupler input) |
| Communication Interface | RS485 / RS232 (optional) |
| Protocol | Modbus RTU |
| Power Supply | DC 5–36V |
| Operating Temperature | -40°C ~ +85°C |
| Relative Humidity | 0–95% RH (non-condensing) |
| Dimensions | Approx. 102.5 × 70 × 35 mm |
| Mounting | 35mm DIN rail |
Application Scenarios
Widely used in industrial automation (equipment status monitoring & actuator control), smart manufacturing (production line switch & analog signal acquisition), smart agriculture (greenhouse fan/valve/irrigation control), building automation (lighting/HVAC/access control), water & environmental systems (pump/valve monitoring & regulation), energy & power (distribution cabinet switch & sensor data), smart home/commercial facilities (remote lighting/appliance control), and any industrial IoT or process control scenario requiring integrated digital I/O + analog acquisition with high reliability and easy Modbus integration.
