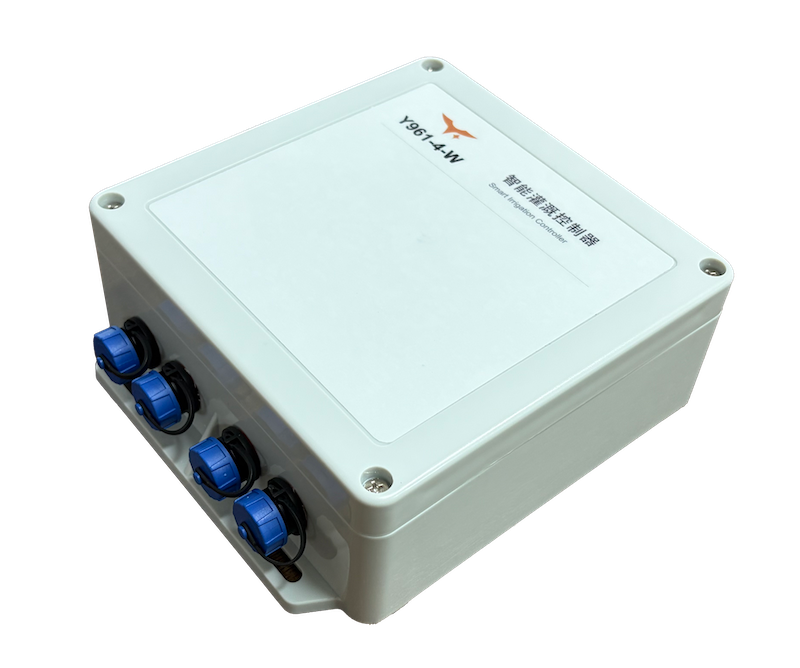

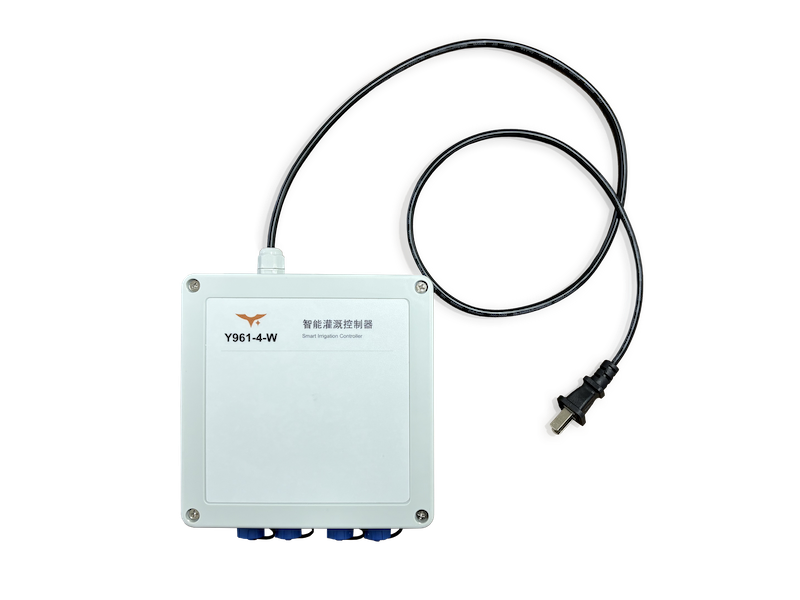

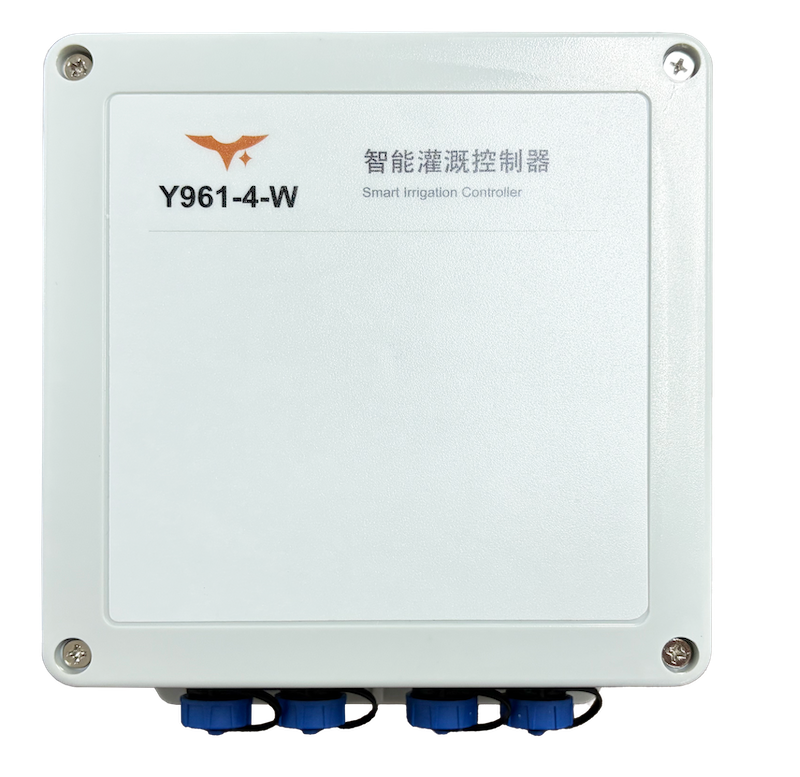

Y961 Wi-Fi Irrigation Controller
Y961 is a Wi-Fi irrigation controller available with 2 or 4 independently switched outputs for greenhouses, nurseries and small zoned-irrigation projects.
- Output channels
- 2 independent switched-power outputs / 4 independent switched-power outputs
- Network
- 2.4 GHz Wi-Fi / 2.4 GHz Wi-Fi
- Input voltage
- AC 220 V or DC 7-30 V, one configuration only / AC 220 V or DC 7-30 V, one configuration only
- Protection
- IP66 with correct sealing; not for immersion / IP66 with correct sealing; not for immersion
$88.10
Price for the selected configuration.
Shipping & Tax: Estimate shipping in your cart. Available options and final charges are confirmed at checkout.
Import duties, taxes, customs fees and destination charges are paid by the customer. View Shipping Policy
Overview
Y961 is a Wi-Fi irrigation controller available with 2 or 4 independently switched outputs for greenhouses, nurseries and small zoned-irrigation projects. It connects to the YenGear Smart Irrigation System over 2.4 GHz Wi-Fi, receives a published irrigation plan and switches matched valve circuits locally according to the schedule.
Key Features
- 2 or 4 independent switched-power outputs for irrigation zones.
- One-time, daily or weekly schedules with zone duration, gaps, intervals, rounds and end time.
- Local execution after the published plan is received by the controller.
- System records for configuration, output and execution status.
- 2.4 GHz Wi-Fi connection; no native 4G or LoRa.
Typical Applications
- Greenhouse hydroponics and leafy-green growing benches.
- Nursery irrigation grouped by bench location or valve group.
- Small zoned-irrigation plots and sequential watering projects.
- Projects that need separately scheduled irrigation zones with 2 or 4 outputs.
How it works & selection
Important Selection Notes
- Outputs switch the input power. They are not dry contacts or voltage converters; match the controller configuration to the valve voltage.
- Check inductive loads, starting current and independent protection before installation. Do not assume a pump can be driven directly.
- The standard system records software output and execution, not measured water volume, flow or valve movement. Retain independent on-site stop and protection measures.
- Installation, wiring and commissioning should be handled by a suitably qualified person.
Technical specifications
| Output channels | 2 independent switched-power outputs / 4 independent switched-power outputs |
|---|---|
| Network | 2.4 GHz Wi-Fi / 2.4 GHz Wi-Fi |
| Input voltage | AC 220 V or DC 7-30 V, one configuration only / AC 220 V or DC 7-30 V, one configuration only |
| Protection | IP66 with correct sealing; not for immersion / IP66 with correct sealing; not for immersion |
Specifications
| Item | Y961-2-W | Y961-4-W |
|---|---|---|
| Output channels | 2 independent switched-power outputs | 4 independent switched-power outputs |
| Network | 2.4 GHz Wi-Fi | 2.4 GHz Wi-Fi |
| Input voltage | AC 220 V or DC 7-30 V, one configuration only | AC 220 V or DC 7-30 V, one configuration only |
| Maximum current per output | 5 A | 5 A |
| Maximum total current | 10 A | 20 A |
| Relay rating | 250 VAC / 30 VDC | 250 VAC / 30 VDC |
| Protection | IP66 with correct sealing; not for immersion | IP66 with correct sealing; not for immersion |
| Control system | YenGear Smart Irrigation System | YenGear Smart Irrigation System |
