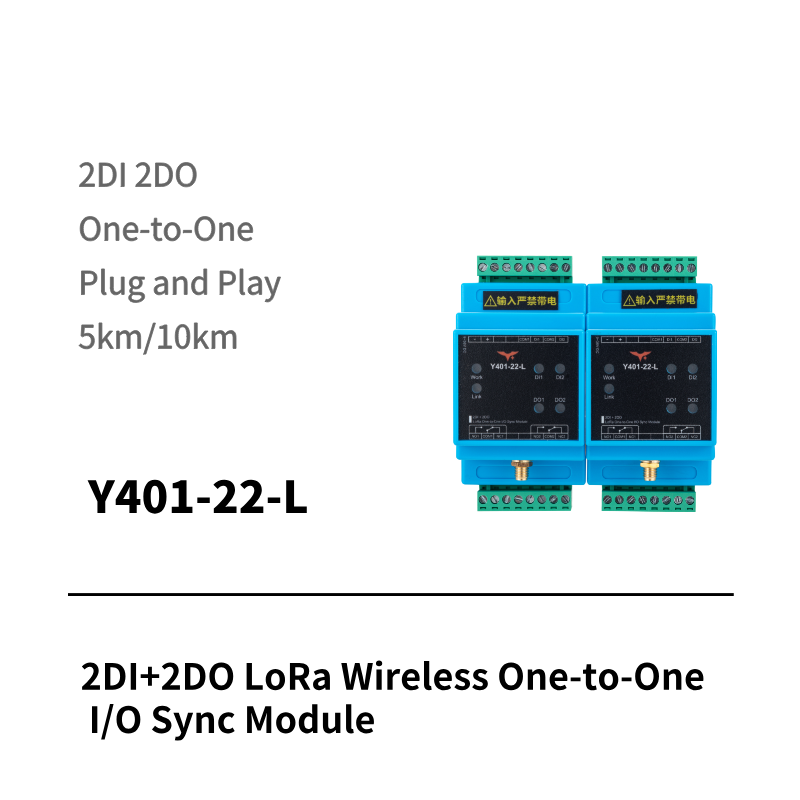

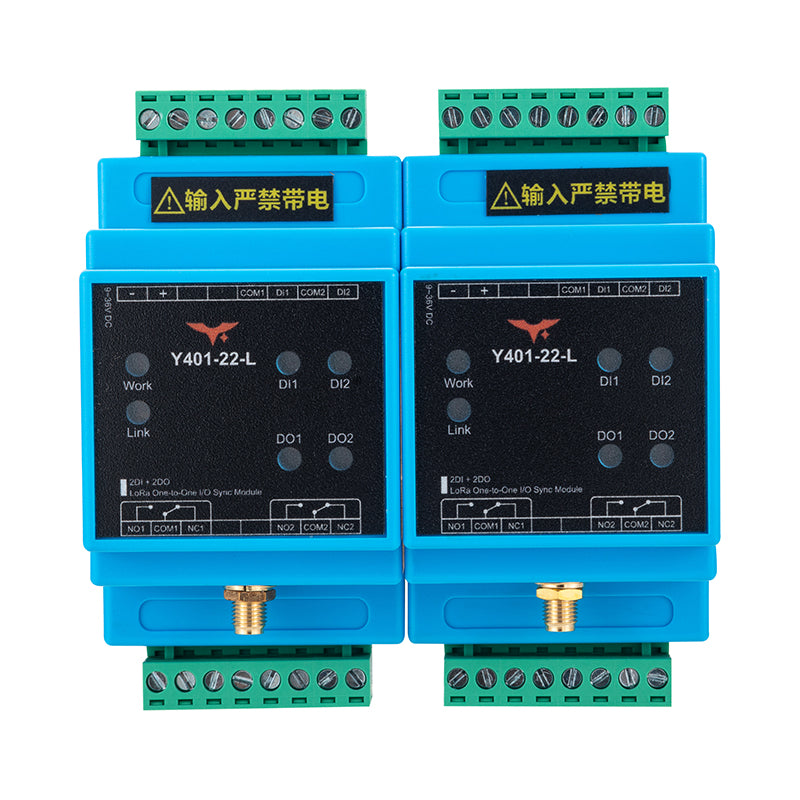

Y401-22-L 2DI + 2DO LoRa I/O Sync Pair
Y401-22-L is a two-channel point-to-point LoRa I/O sync set.
- Product type / topology
- Point-to-point, bidirectional
- Channels
- 2DI + 2DO per module
- Input signals
- 2 × passive dry-contact / NPN open-collector inputs per module; no voltage input to DI
- Power supply
- 9–36 VDC
$95.00
Price per matched pair (2 modules).
Shipping & Tax: Shipping is quoted separately and paid before dispatch. Import duties, taxes, customs fees and destination charges are paid by the customer.
Overview

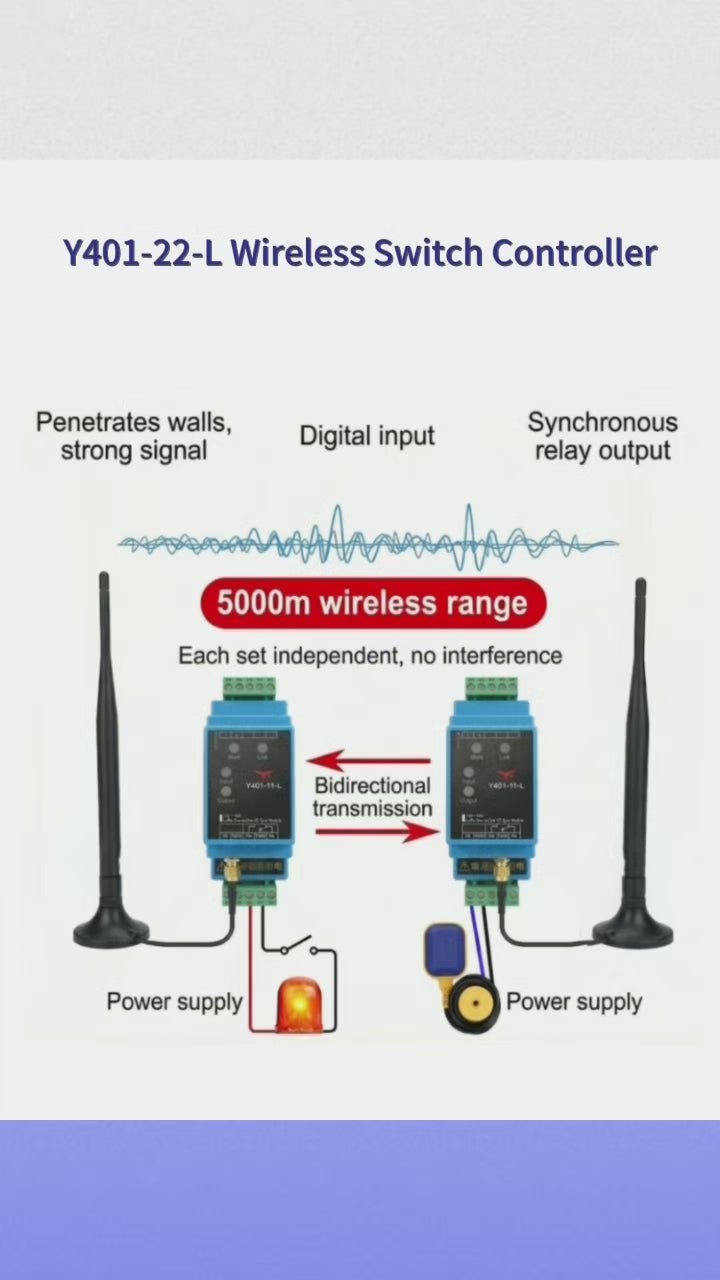

Y401-22-L is a two-channel point-to-point LoRa I/O sync set. Two factory-paired units transfer two independent dry-contact signals and relay outputs between remote points, without running long signal cable.
Typical applications
- Two-channel pump, valve, gate, or alarm interlock.
- Remote equipment control where each channel must remain independent.
- Replacing two wired control loops with one paired wireless set.
How it works & selection
- Channel 1 DI on Device A drives Channel 1 DO on Device B.
- Channel 2 DI on Device A drives Channel 2 DO on Device B.
- Both channels also work in the reverse direction.
Selection notes
This model is for two independent signals. For four channels, choose Y401-44-L.
Y401 series demonstration
Demonstration with the Y401-22-L model. Channel counts and signal types depend on the selected model.
Technical specifications
| Product type / topology | Point-to-point, bidirectional |
|---|---|
| Channels | 2DI + 2DO per module |
| Input signals | 2 × passive dry-contact / NPN open-collector inputs per module; no voltage input to DI |
| Power supply | 9–36 VDC |
Signals and communication
| Product type / topology | Point-to-point, bidirectional |
|---|---|
| Channels | 2DI + 2DO per module |
| Signal mapping | DI1/DI2 to matching DO1/DO2; bidirectional |
| System configuration | 2 factory-paired modules (Device A + Device B) |
| Frequency band | 398–525 MHz |
| Communication range | Up to 5 km standard; 10 km option requires the specified configuration and antenna. Open-area figures; obstructions, interference and antenna placement affect the installed link. |
Electrical
| Power supply | 9–36 VDC |
|---|---|
| Power consumption | 1.5 W max. |
| Input signals | 2 × passive dry-contact / NPN open-collector inputs per module; no voltage input to DI |
| Relay outputs | 2 × SPDT relays per module; AC 277 V / 5 A or DC 28 V / 5 A |
Mechanical and environment
| Dimensions | 88 × 72 × 59 mm (each module) |
|---|---|
| Mounting | 35 mm DIN rail |
| Environment | −20 to +85 °C; 10% to 90% RH, non-condensing |
| Protection | IP20 |
Package & resources

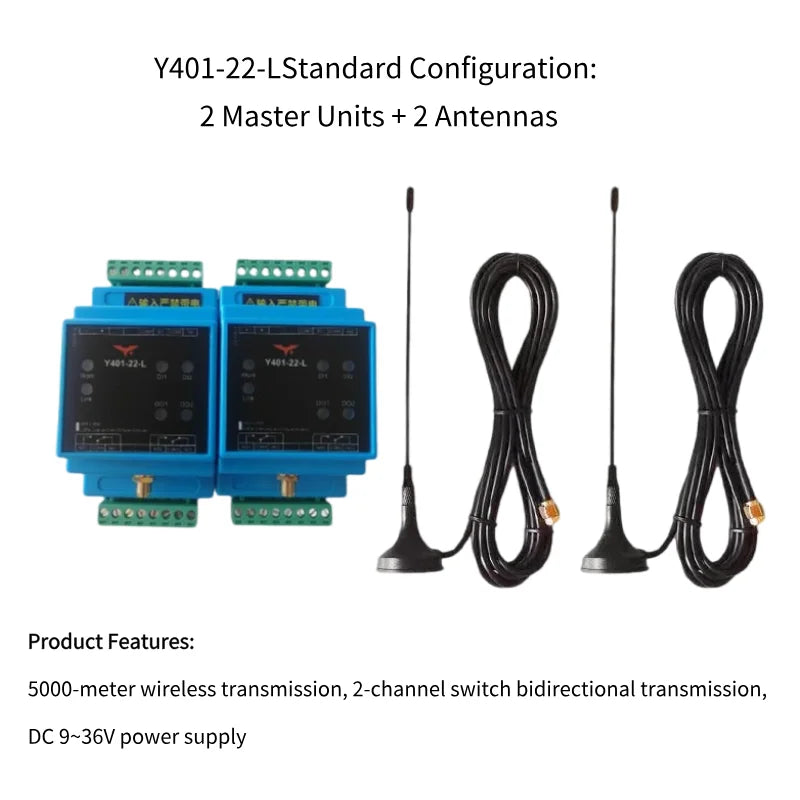

Package contents
| Item | Qty. |
|---|---|
| Y401-22-L modules (Device A and Device B) | 2 |
| 470 MHz magnetic-mount antennas | 2 |
| DIN rail clips | 2 |
| Quick reference guide | 1 |
| Warranty card | 1 |
