Common Pain Points
Traditional serial communication devices often suffer from wired limitations requiring costly cabling in remote/harsh environments, unstable connectivity due to interference or distance, narrow voltage/temperature ranges causing failures in extreme conditions, complex setup/programming for IoT integration, frequent downtime without auto-recovery, and poor adaptability for legacy PLC/equipment upgrades, severely hindering reliable remote monitoring, data transmission, and cost-effective IoT deployment in industrial automation, smart grid, cold chain, and agriculture.

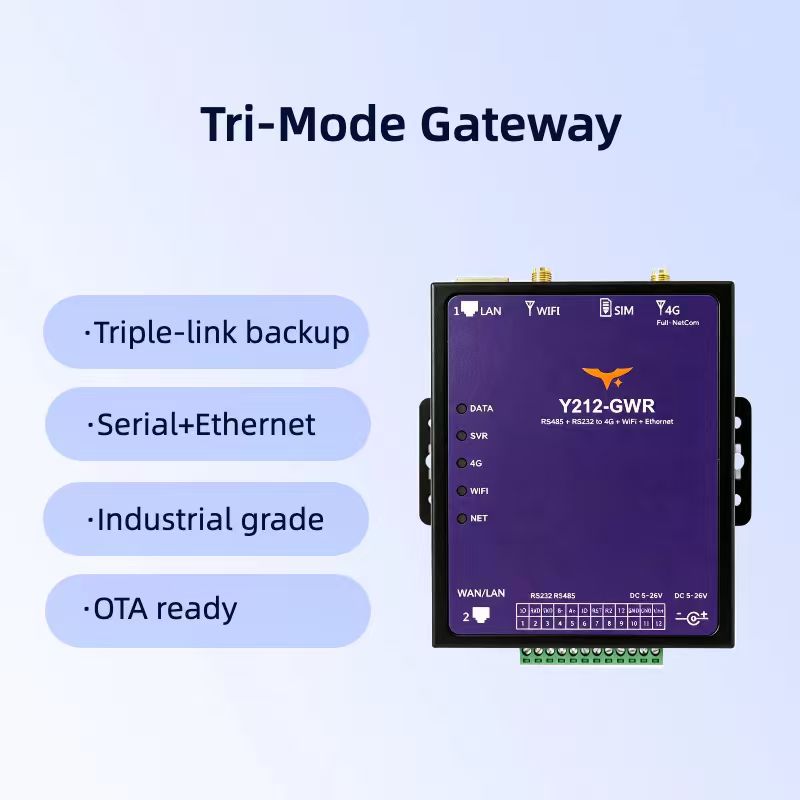

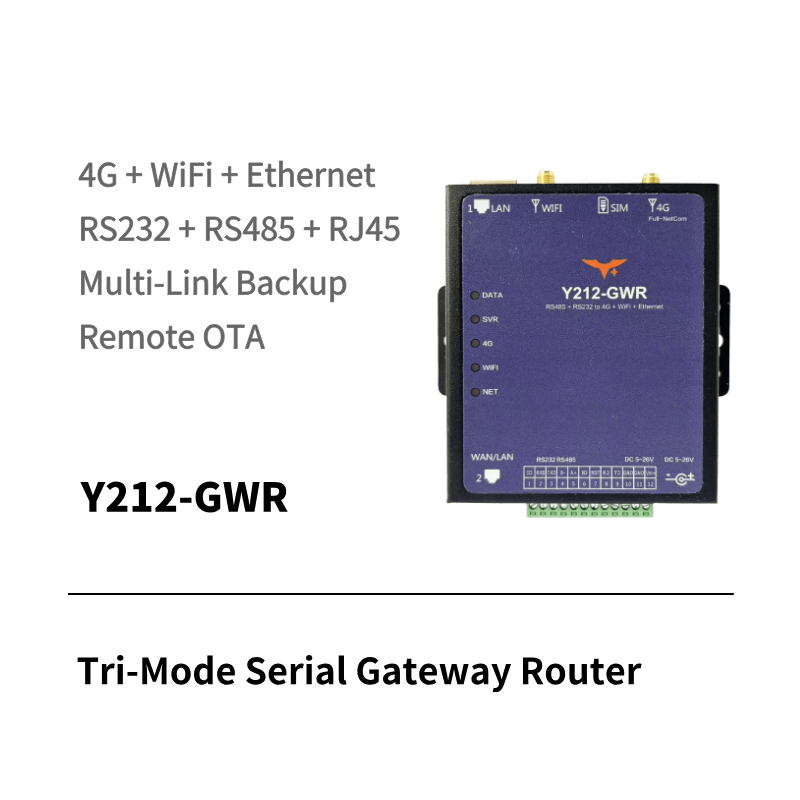

Solution & Core Features

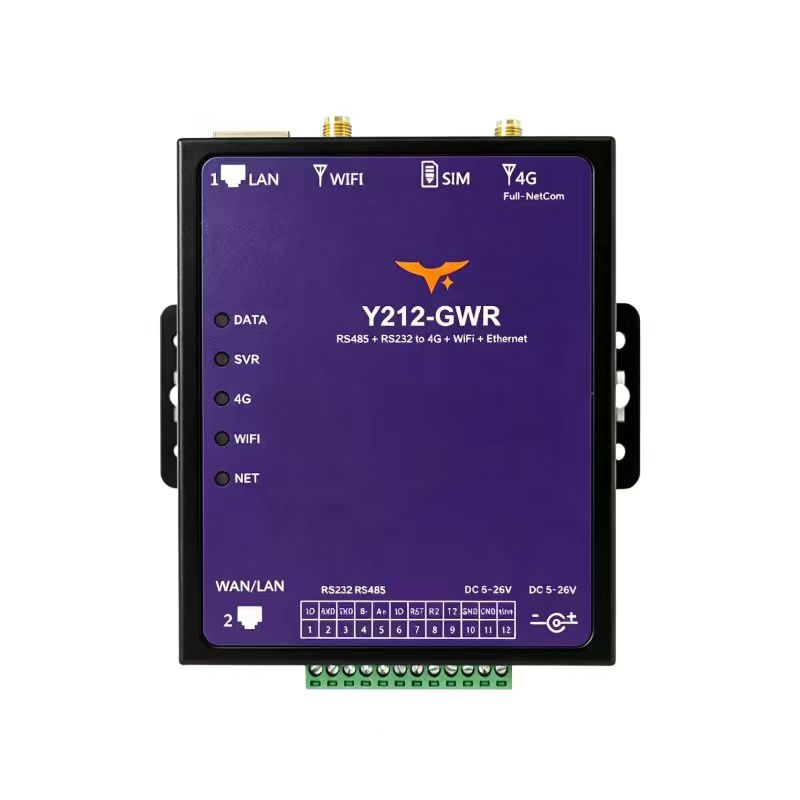

1. Compact Industrial Design — Compact size (105.4 × 98 × 25 mm), rugged metal/ABS housing with IP20 protection, supports 35 mm DIN rail or panel mounting, easy deployment in space-limited cabinets or harsh environments.
2. Triple-Link 4G + Wi-Fi + Ethernet Backup — Powered by Qualcomm LTE Cat.4 module, supports domestic full-network coverage and mainstream overseas bands, automatic failover (WAN > Wi-Fi > 4G), 99.9% uptime even in remote areas.
3. Multi-Interface & Cloud-Ready Protocols — Supports RS232 + RS485 serial ports (1200–500000 bps baud rate), dual RJ45 Ethernet (WAN + LAN), Wi-Fi AP/STA, optional TTL; supports transparent TCP/UDP, HTTP/HTTPS, MQTT/MQTTS, WebSocket; Modbus TCP ↔ RTU gateway conversion for seamless PLC/SCADA integration.
4. Industrial-Grade Durability & High Reliability — 6–26 VDC input, full industrial temperature range -40°C to +85°C; hardware watchdog prevents crashes, ESD/surge/reverse-polarity protection, metal/ABS housing ensures 24/7 uninterrupted stable operation.
5. Remote OTA & Plug-and-Play — Pre-installed AT commands, remote configuration, OTA upgrade, logs, and alarm reporting; no site visits needed for maintenance; external SMA antenna connectors for 4G and Wi-Fi.
Technical Specifications
|
Category |
Parameter |
Details |
|
Basic |
Dimensions |
105.4 × 98 × 25 mm |
|
|
Operating Temperature |
-40°C ~ +85°C (industrial grade) |
|
|
Power Supply |
6 ~ 26 VDC (recommended 12V/2A) |
|
|
Power Consumption |
Standby 100-200 mA @12V; TX 200-300 mA @12V |
|
Wireless |
Module |
Qualcomm LTE Cat.4 (2G/3G fallback) |
|
|
Frequency Bands |
LTE-FDD: B1/B3/B5/B8; LTE-TDD: B34/B38/B39/B40/ B41; WCDMA B1/B8; CDMA2000 BC0; GSM EGSM900 /DCS1800 |
|
|
Data Rate |
Up to 150 Mbps DL / 50 Mbps UL (Cat.4) |
|
|
SIM |
Drawer-style, 1.8V/3V, full-size SIM/USIM |
|
|
Antenna |
SMA female, 50 ohm (4G + Wi-Fi) |
|
Wi-Fi |
Standard |
IEEE 802.11 b/g/n, 2.4 GHz |
|
|
Mode |
AP or STA (switchable) |
|
Ethernet |
Ports |
2 × RJ45, 10/100 Mbps (Port1 LAN, Port2 WAN configurable) |
|
Serial |
Interfaces |
RS232 + RS485 (shared terminal), optional TTL |
|
|
Baud Rate |
1200 ~ 500000 bps (default 9600-8-N-1) |
|
|
Data Bits / Parity / Stop Bits |
8 bits, NONE/ODD/EVEN, 1/2 stop bits |
|
I/O |
GPIO |
2 x configurable (input/output, 3.3V logic) + 1 x function pin |
|
Software |
Protocols |
Transparent TCP/UDP, HTTP/HTTPS, MQTT/MQTTS, WebSocket, Modbus TCP/RTU Gateway |
|
|
Network |
DNS, PING, heartbeat, auto-reconnect, OTA, smart path switching |
|
Mounting |
Mounting |
35 mm DIN rail / panel screws / desktop |
|
|
Protection |
IP20 metal/ABS housing, ESD/surge/reverse-polarity protection |
Application Scenarios
Widely deployed in agricultural IoT (greenhouse, livestock, pump remote control), energy and municipal systems (distribution switches, street lights, water pipelines), industrial automation (PLC and meter remote monitoring), environmental protection (air, water, noise monitoring stations), and all scenarios requiring reliable multi-link wireless upgrade of legacy serial devices to cloud/IoT platforms with minimal cost and downtime.
