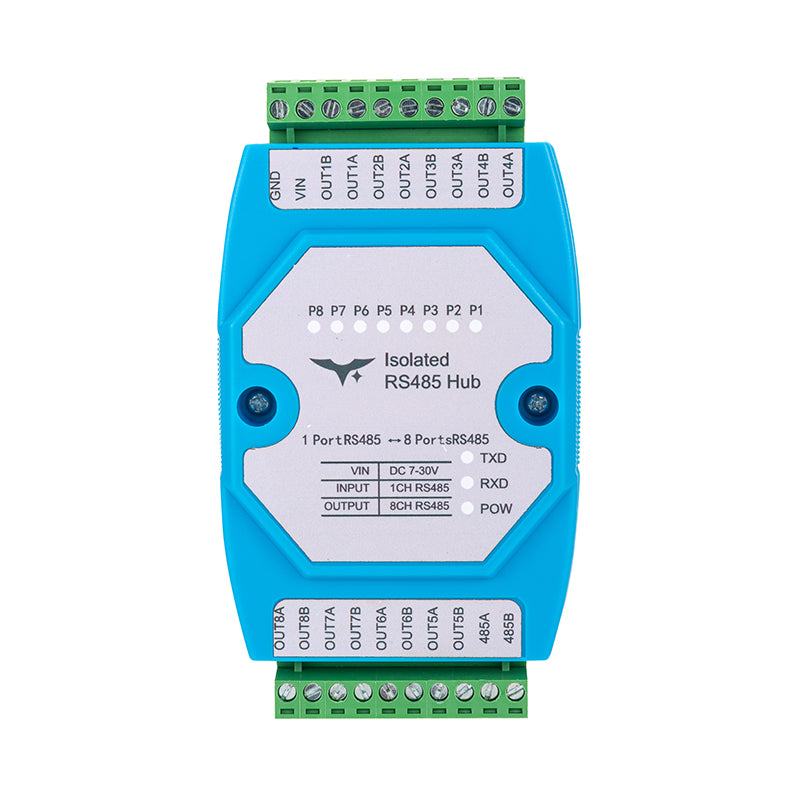

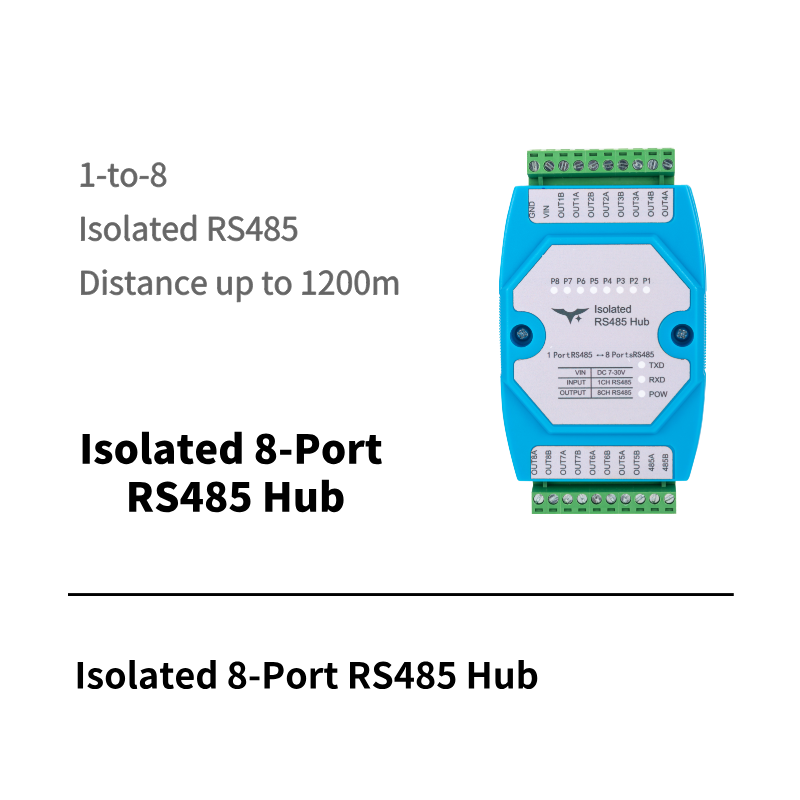

Isolated 1-to-8 RS485 Hub
$30.78
Prices exclude import duties, taxes and customs fees. Eligible standard orders over US$200 may qualify for free shipping; final shipping and lead time are confirmed at checkout or quotation.
Product Description
This isolated RS485 hub expands one RS485 line into eight branches, helping organize multi-drop wiring in Modbus RTU and industrial communication projects.
Key Specifications
| Topology / product type | 1-to-8 isolated RS485 hub |
|---|---|
| Channels / ports | 1 RS485 input + 8 RS485 output branches |
| I/O / link mapping | Branch distribution for Modbus RTU and RS485 networks |
| Interfaces | RS485 input and 8 isolated RS485 branches |

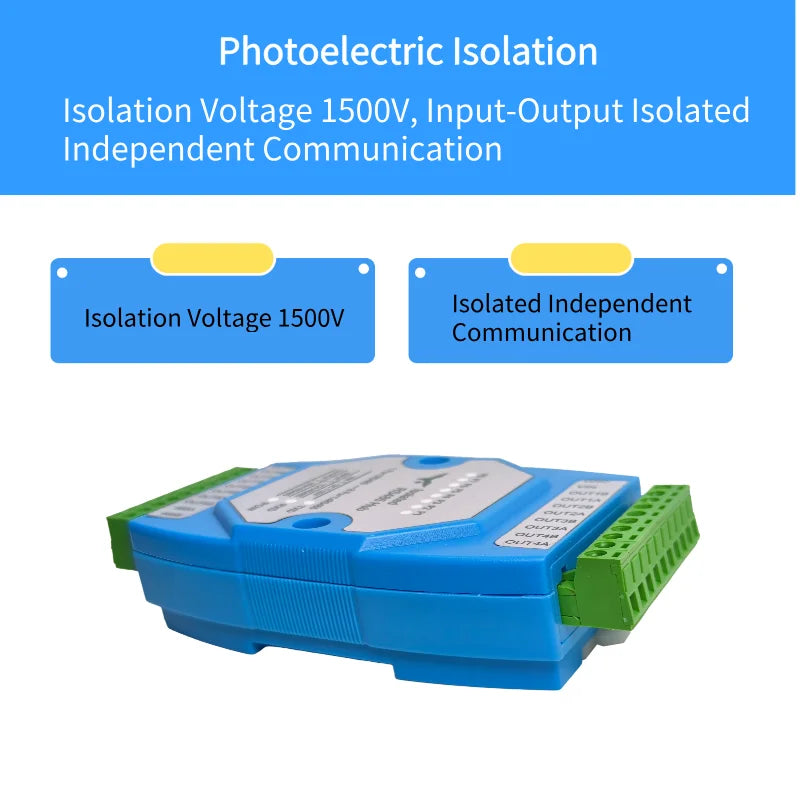

| Key functions | Isolation between RS485 segments helps reduce fault spread and organize multi-drop wiring. |
Best Fit
- RS485 wiring branches in cabinets and field panels.
- Modbus RTU networks with several device groups.
- Projects that need isolation between RS485 segments.
Key Features
- 1 input to 8 RS485 output branches.
- Isolation helps reduce fault spread between branches.
- Useful for commissioning, maintenance, and cleaner cabinet wiring.
Before Ordering

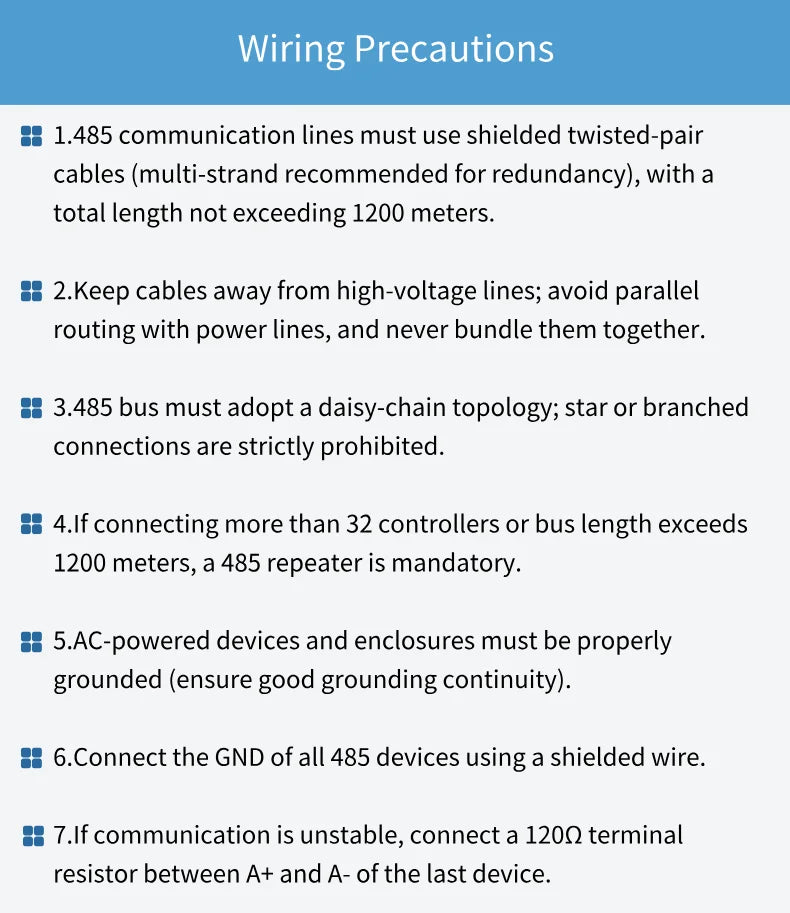

Confirm baud rate, cable length, grounding, and termination plan. RS485 reliability depends as much on wiring as on the hub.
